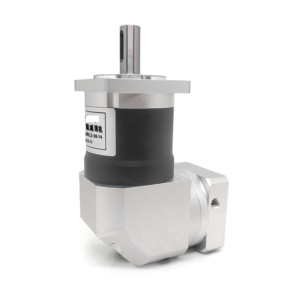

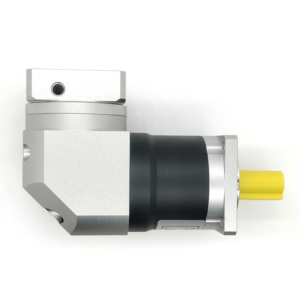

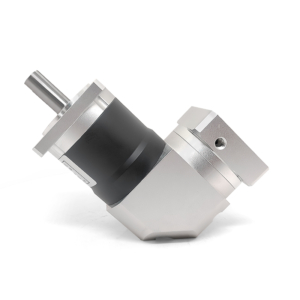

WPGR series spur gear reducer

Accuracy: Standard
Backlash: 12-15 arc min
Noise: 58-65 dB
Lifespan: 20,000 hours
Transmission Efficiency: Over 94%

Product Features

  • Space-Saving

    The motor can be mounted in a 90° bend, saving installation space.

  • High Rigidity and High Torque

    The use of integral needle roller bearings significantly improves rigidity and torque.

  • Easy Installation

    Can be installed on any brand of motor.

  • No Grease Leakage

    Uses high-viscosity, non-separating grease, effectively preventing grease leakage.

  • Easy Maintenance

    No grease changes are required during the product lifecycle, making installation even easier.

  • List Title

    List Content goes here

Download

Specifications/规格 Number of stages/段数 reduction ratio/减速比 WPGR060 WPGR070 WPGR080 WPGR090 WPGR115 WPGR142 WPGR215
Rated output torque (Nm)/额定输出扭矩 L1 3 18 22 40 75 120 400 1050
4 40 45 110 85 215 800 1780
5 36 41 90 100 230 700 1600
7 25 26 50 80 160 550 1000
10 15 15 22 50 110 210 305
L2 12 20 45 110 75 120 800 1780
15 20 41 90 75 120 700 1600
20 31 45 110 85 215 800 1000
25 39 41 90 100 230 700 1780
30 20 41 90 75 120 700 1600
35 39 —— 55 100 230 550 1780
40 31 41 90 85 215 700 1600
50 39 25 50 100 230 450 700
70 25 —— —— 80 160 —— ——
100 15 40 110 50 110 800 1780
Maximum output torque (Nm)/最大输出扭矩 L1,L2 3~100 2 times rated output torque/2倍额定输出扭矩
Return stroke standard clearance (arcmin)/回程标准间隙 L1 3~10 ≤12 ≤12 ≤12 ≤12 ≤12 ≤12 ≤12
L2 12~100 ≤15 ≤15 ≤15 ≤15 ≤15 ≤15 ≤15
Rated Input Speed ​​(rpm)/额定输入转速 L1,L2 3~100 4000 4000 3500 3500 3500 3000 2500
Maximum Input Speed ​​(rpm)/最大输入转速 L1,L2 3~100 8000 8000 6000 6000 6000 4500 4000
Torsional stiffness (Nm/arcmin)/扭转刚性 L1,L2 3~100 1.8 1.95 4.7 4.85 11 35 55
Allowable Radial Load (N)容许径向负荷 L1,L2 3~100 240 265 400 450 1200 3700 4800
Allowable axial load (N)/容许轴向负荷 L1,L2 3~100 220 230 420 430 1000 3500 4500
Noise (dB)/噪音 L1,L2 3~100 ≤58 ≤58 ≤60 ≤63 ≤68 ≤70 ≤70
Service life (hrs)使用寿命 L1,L2 3~100 20000
Full load efficiency (%)满载效率 L1 3~10 ≥97
L2 12~100 ≥94
Operating Temperature Range (°C)/使用温度范围 L1,L2 3~100 -10~+90
Protection Level/防护等级 L1,L2 3~100 IP65
Lubricant/润滑油 L1,L2 3~100 Fully synthetic lubricant/全合成润滑油脂
Reducer transmission inertia
Specifications/规格 Number of stages/段数 reduction ratio/减速比 WPG060 WPG070 WPG080 WPG090 WPG115 WPG142 WPG215
Moment of inertia (kg.cm)/转动惯量 L1 3 0.135 0.135 0.77 0.77 2.63 5.83 251.6
4 0.093 0.093 0.52 0.52 1.79 3.21 243.0
5 0.078 0.078 0.45 0.45 1.53 3.1 232.8
7 0.065 0.065 0.39 0.39 1.3 2.1 205.8
10 0.063 0.063 0.39 0.39 1.28 1.95 ——
L2 12 0.11 —— 0.37 0.37 3.27 —— ——
15 0.039 0.039 0.72 0.72 2.4 3.35 55.3
20 0.049 0.049 0.35 0.35 1.06 2.73 52.10
25 0.039 0.039 0.25 0.25 1.4 2.25 50.09
30 0.038 0.038 0.18 0.18 1.4 2.25 50.09
35 0.09 —— 0.35 0.35 —— —— ——
40 0.27 0.27 0.18 0.18 1.3 2.25 ——
50 0.09 —— 0.35 0.35 3.04 —— ——
70 0.09 —— 0.35 0.35 3.04 —— ——
100 0.016 0.016 0.25 0.25 1.35 2.15 ——
