RV Reducer WRV-C Series
Product Features
Download
Specitications
| Model | Reducer body/减速机本体 | Dimensions/外形尺寸图 | |||||||||||||
| reduction ratio/减速比 | Rated torque/额定转矩 | Rated output speed/额定输出转速 | Rated life/额定寿命 | Start or stop allowable torque/启动、停止容许转矩 | Instantaneous maximum allowable torque/瞬时最大容许转矩 | Allowable input speed/容许输入转速 | Allowable output speed/容许输出转速 | Output speed reference value during continuous operation with rated torque/额定转矩连续 运行时的输出 转速参考值 |
Backlash/背隙 | Empty/空程 | Torsional stiffness (representative value)/扭转刚度 （代表值) |
Startup efficiency/启动效率 | Allowable torque/容许力矩 | ||
| (Nm) | (rpm) | (h) | (Nm) | (Nm) | (rpm) | (rpm) | (rpm) | (arc.min.) | (arc.min.) | (Nm/arc.mim.) | (%) | (Nm) | |||

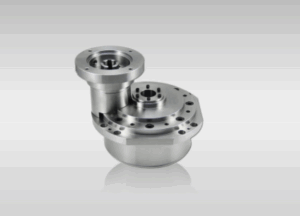

| WRD20E | 57 | 167 | 15 | 6000 | 412 | 833 | 3500 | 61 | 56 | 1.0 | 1.0 | 49 | 75 | 882 | WRD20E/i57C |
| 81 | 43 | 42 | WRD20E/i81C WRD20E/i81C1 WRD20E/i81CS WRD20E/i81CS1 |
||||||||||||
| 121 | 29 | 29 | WRD20E/i121C WRD20E/i121C1 WRD20E/i121CS WRD20E/i121CS1 |
||||||||||||

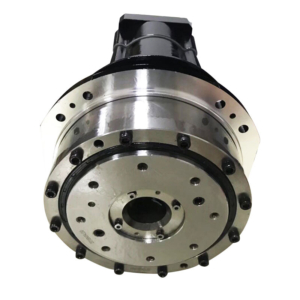

| WRD40E | 81 | 412 | 15 | 6000 | 1029 | 2058 | 3000 | 37 | 34 | 1.0 | 1.0 | 108 | 70 | 1666 | WRD40E/i81C WRD40E/i81C1 WRD40E/i81CS WRD40E/i181CS1 |
| 121 | 25 | 25 | WRD40E/i121C WRD40E/i121C1 WRD40E/i121CS WRD40E/i121CS1 |
||||||||||||

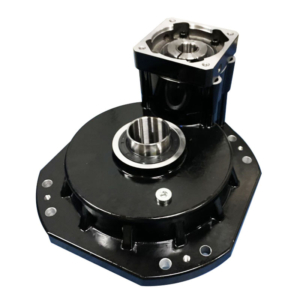

| WRD80E | 81 | 784 | 15 | 6000 | 1960 | 3920 | 3000 | 37 | 29 | 1.0 | 1.0 | 196 | 75 | 2156 | WRD80E/i81CS |
| 101 | 30 | 28 | WRD80E/i101C | ||||||||||||
| 121 | 25 | 25 | WRD80E/i121C WRD80E/i101CS |
||||||||||||
| 153 | 20 | 20 | WRD80E/i153C | ||||||||||||

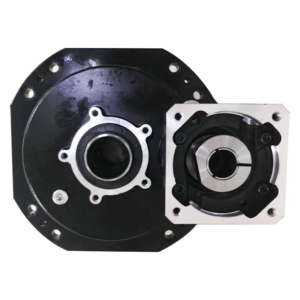

| WRD110E | 111 | 1078 | 15 | 6000 | 2695 | 5390 | 3000 | 27 | 18 | 1.0 | 1.0 | 294 | 75 | 2940 | WRD110E/i111CS |
| WRD27C | 104.43 | 265 | 15 | 6000 | 662 | 1323 | 3500 | 33 | 33 | 1.0 | 1.0 | 147 | 70 | 980 | WRD27C/i104.43C |
| WRD50C | 82.84 | 490 | 15 | 6000 | 1225 | 2450 | 3000 | 36 | 30 | 1.0 | 1.0 | 255 | 70 | 1764 | WRD50C/i82.84C |
| 152.6 | 20 | 20 | WRD50C/i52.6C WRD50C/i152.6C1 |
||||||||||||
| WRD120C | 118.97 | 980 | 15 | 6000 | 2450 | 4900 | 3000 | 25 | 20 | 1.0 | 1.0 | 510 | 80 | 2450 | WRD120C/i118.97C |

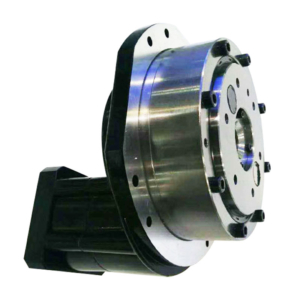

| WRD320C | 253 | 3136 | 15 | 6000 | 7840 | 15600 | 2000 | 8 | 8 | 1.0 | 1.0 | 1960 | 80 | 20580 | WRD320C/i53C WRD320C/i253C1 WRD320C/i253C2 WRD320C/i253C3 WRD320C/i253C4 WRD320C/i253C5 |
