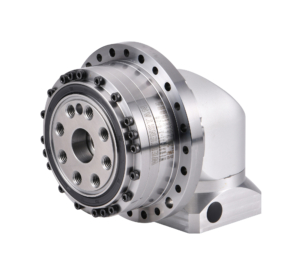

• Micro Cycloidal Pinwheel Reducer WFR 32

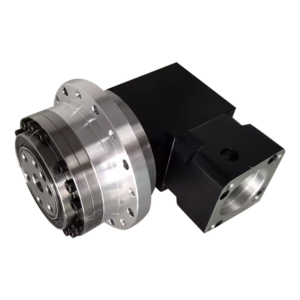

  • Micro Cycloidal Pinwheel Reducer WFR 17

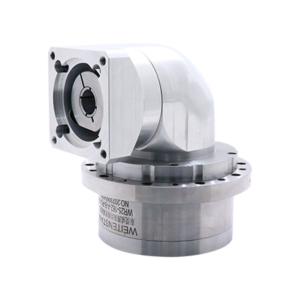

  • Micro Cycloidal Pinwheel Reducer WFR 25

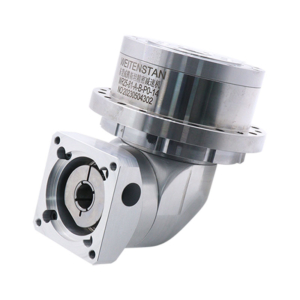

  • Micro Cycloidal Pinwheel Reducer WFR 40
1234

Flange Output Circular Gear Reducer (WFR Series)

WFR series is ahigh-precision reducer with flanges,with a wide range of applications.The WFR series high-precision reducer includes a precise reduction mechanism and radial axial roller bearings.The unique design of the gearbox allows the load to directly act on the output flange or housing without the need for additional bearings. The characteristic of the WFR series high-precision reducer is that the input and output angles are go degrees,which can greatly save installation space. The modular design allows for the installation of motors and reducers through flanges.

Product Features

  • High rigidity
  • High precision
  • High torque
  • Small size
  • Efficient
  • Long lifetime
  • Easy assembly
  • High stability
  • Low noise
  • Space saving
model型号 speed ratio速比 Rated output torque额定输出转矩 Acceleration and braking torque加速和制动转矩 Allowable emergency braking torque容许紧急制动转矩 Rated input speed额定输入转速 Maximum input speed最大输入转速 Overturning stiffness倾覆刚度 Torsional stiffness扭转刚度 Maximum radial force最大径向力 Maximum axial force最大轴向力 Maximum no-load starting torque最大无负载启动转矩 Average angular transfer error平均角度传递误差 Backlash accuracy回差精度 moment of inertia转动惯量 weight重量
Axis rotation轴旋转 Shell rotation外壳旋转 Nm Nm Nm rpm rpm Nm/arcmin Nm/arcmin KN KN Nm arcsec arcmin kg·m² kg
WFR17 21 22 30 160 240 3000 5000 65 10 2.5 3.3 0.3 ±20 P0≤1.5
P1≤3           P2≤5		 5.5 1.5
31 32 40 0.29
41 42 50 0.28
51 52 60 0.28
81 82 80 0.27
WFR25 21 22 50 220 330 3000 4000 131 24 4.5 5.8 0.4 ±20 P0≤1.5
P1≤3           P2≤5		 6.5 3.2
31 32 60 0.37
51 52 80 0.35
81 82 110 0.34
101 102 130 0.33
WFR32 25 26 120 500 800 3000 4000 240 35 6.5 8.2 0.65 ±20 P0≤1.5
P1≤3           P2≤5		 18 6.8
31 32 150 0.63
51 52 180 0.6
81 82 220 0.6
101 102 260 0.6
121 122 300 0.6
WFR40 31 32 250 700 1050 3000 4000 450 75 8.3 10.7 0.7 ±15 P0≤1.5
P1≤3           P2≤5		 68 9.3
51 52 300 0.7
81 82 450 0.65
121 122 600 0.65
